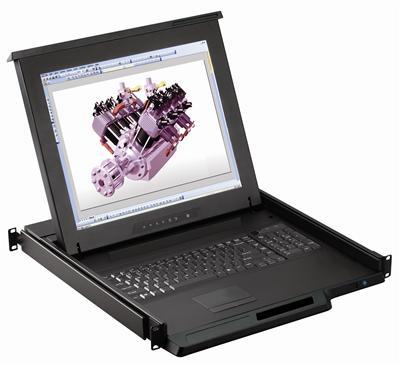

Name: 1U 17" Rackmount Monitor Keyboard Drawer Combo with USB and PS2 Interface Touchpad
SKU: RMK1700
Availability: InStock

1U Rackmount Monitor Keyboard drawer with 17” LCD
Built in Keyboard, touchpad or trackball and Samsung LCD
Touchpad or Trackball keyboard with combo cable for USB or PS2 and VGA 15 Pin HD video
Multiple Keyboard language selections
Enhanced aesthetics with new molded front panel and two point lock
Adjustable Mounting brackets for various rack depths
Slide rails with fixed positions to prevent drawer movement when typing
Optional Mounting hardware available for two post Telco style racks

Specifications

LCD	Samsung LCD Panel
Display Area	337.92(H) x 270.34(V) mm
Contrast Ratio	1000: 1
Viewing Angle	160 °(H) x 160 °(V) (Typ.)
Resolution	1280 x 1024
LCD MTBF	50,000 Hrs
Tr Response Time (ms)	1.3
Brightness	250 cd/m2
Panel Color	16.7M
Back Light	4 CCFTs(Cold Cathode Fluorescent tube)
Video
Horizontal Sync	64 – 80 KHz (Typ.)
Vertical Sync	60-75 Hz (Typ.)
Input Signal Analog	RGB 0.7Vp-p
Power Management	VESA DPMS
Control
OSD Control	Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input ,select, Multi window, Clear EEPROM, OSD adjust, Save
Inputs
Power	100-240VAC, 50 / 60Hz with IEC Connector
Video Input	15-pin D-Sub Connector
Dimensions
Product (WXDXH)	17.4 x 21.7 x 1.73 inches
Packaging (WXDXH)	23.6 x 30.3 x 7.1 inches
Weight
Net	35lbs
Gross	48lbs
Certifications	CE, FCC, RoHS

Weight	48 lbs
Dimensions	24 × 30.5 × 7.1 in
